3-5t/H Feed Pellet Mill Press Machine For Chicken Poultry Feed
Pellet Making
Introduction for 3-5T/H Feed Pellet Mill Press Machine:
This series of ring die 3-5t/h feed pellet mill press machine is
the main machine for pressing feed pellets.
The ring die 3-5t/h feed pellet mill press machine is mainly composed of feeder, conditioner, pelleting chamber,
lubrication system, etc.
The ring die 3-5t/h feed pellet mill press machine is widely used in feed factory, farm, fertilizer plant, Chinese
herbal medicine and chemical granule pressing.
Main Parameters of 3-5T/H Feed Pellet Mill Press Machine:
| Model | Capacity (t/h) | Power (kw) | Feeding Power (kw) | Conditioner Power (kw) | Weight (kg) |
| SZLH250 | 1-2t/h | 22kw | 0.55kw | 1.5kw | 1000kg |
| SZLH320 | 3-5t/h | 37kw | 1.5kw | 2.2kw | 2500kg |
| SZLH350 | 5-8t/h | 55kw | 1.5kw | 3.0kw | 3500kg |
| SZLH420 | 8-12t/h | 110kw | 2.2kw | 7.5kw | 4200kg |
Application of 3-5T/H Feed Pellet Mill Press Machine:
The ring die 3-5t/h feed pellet mill press machine can produce feed pellets for chicken, pig, duck, sheep, cattle and
other animals.
Raw Material Applicable for 3-5T/H Feed Pellet Mill Press Machine:
Corn, bran, soybean meal, straw, grass, rice husk, etc.
Features of 3-5T/H Feed Pellet Mill Press Machine:
1. Feeder, conditioner, and chute of this animal feed pellet
machine are all made of stainless steel for durability.
2. The feeding system adopts electromagnetic speed control design,
which is convenient in speed adjusting and fully adapts to the
requirements of different materials.
3. The main drive adopts high-precision gear transmission, and the
ring die adopts the quick release hoop type, which is easy to
disassemble and the output is increased by about 20% compared with
the belt drive type.
4. Safe and reliable with safety devices such as strong magnetic
security magnets and overload protection device.
5. Top configuration: SKF bearings, Siemens motors, Schneider
Electric, on-site touch screen operation cabinet.

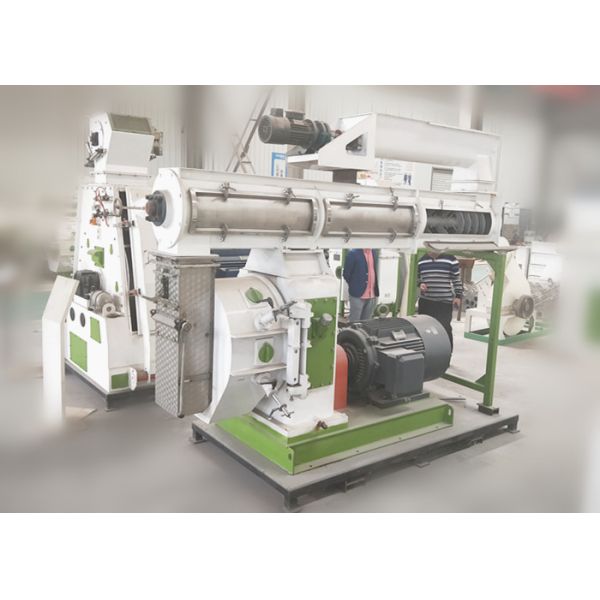

Structure of 3-5T/H Feed Pellet Mill Press Machine:
1. Feeder motor
2. Screw feeder
3. Conditioner
4. Conditioner motor
5. Pellet machine main electric motor(Siemens)
6. Pelleting chamber(die and roller inside)
7. Pellet Machine base
Main Parts of Ring Die Cattle Feed Pellet Making Machine:
